Stop the Flip: Troubleshooting a Tripping AC Breaker

What "AC Circuit Breaker Keeps Tripping" Actually Means (And Why It Matters)

AC circuit breaker keeps tripping what it means is simple: your air conditioner is pulling more electrical current than its circuit can safely handle, and the breaker is doing its job by shutting the power off to prevent overheating, wire damage, or a fire.

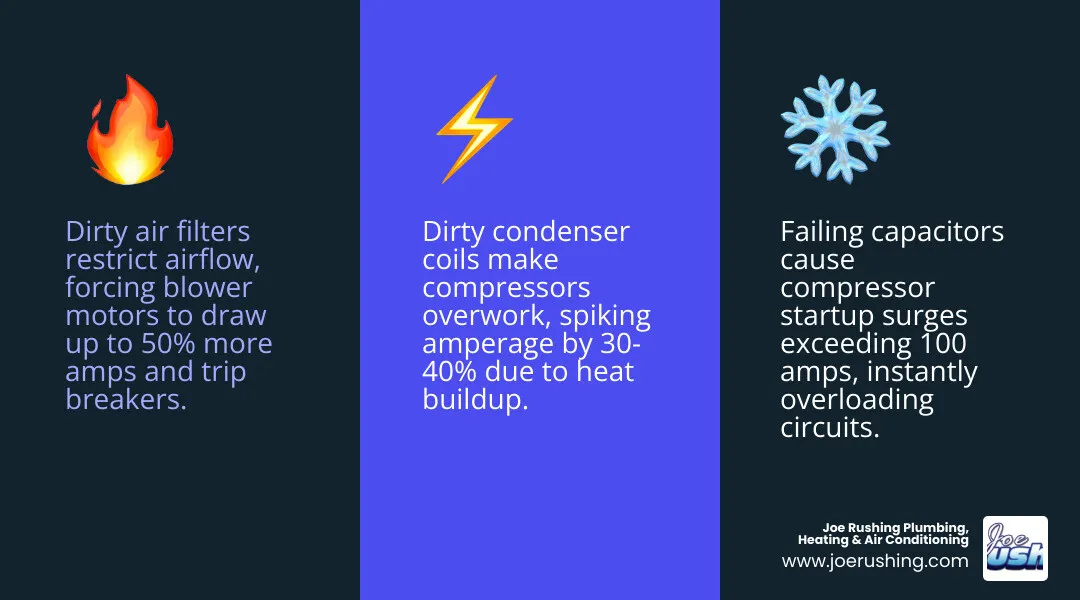

Here are the most common reasons it happens:

• Dirty air filter — restricted airflow forces the blower motor to work harder, drawing excess power
• Dirty condenser coils — trapped heat makes the compressor overwork and spike its amperage
• Failing capacitor — a bad capacitor causes the compressor to struggle at startup, pulling a massive surge of current
• Worn or grounded compressor — internal motor failure creates a direct electrical fault, tripping the breaker instantly
• Loose wiring or a bad breaker — faulty connections or a worn-out breaker can cause trips even when the AC itself is fine
• Overloaded circuit — too many high-draw appliances sharing the same circuit push it past its rated limit

If your breaker trips once and stays on after a reset, it may be a one-time overload. If it keeps tripping — especially immediately after you reset it — that is a warning sign of a serious electrical or mechanical problem that needs professional attention.

I'm Ronda Rushing Brown, a third-generation family business leader with Joe Rushing Plumbing, Heating & Air Conditioning, and over the years I've seen just how much confusion surrounds ac circuit breaker keeps tripping what it means for everyday homeowners. Understanding what your breaker is telling you is the first step toward keeping your home safe and your AC running reliably all summer long.

What an AC Circuit Breaker Keeps Tripping Means for Your Home

When you are staring at your electrical panel in the garage or on the side of your house, it is easy to view that flipped switch as a nuisance. However, in General Air Conditioning Lubbock TX, a tripped breaker is actually your best friend. It is a safety mechanism designed specifically for fire prevention.

Every circuit in your West Texas home has an amperage rating. This is the maximum amount of electrical "flow" the wires can handle before they start to get dangerously hot. Most central AC systems are on a dedicated circuit with a specific breaker size, such as 30 or 50 amps. If a component inside your AC starts to fail or gets bogged down by dirt, it might try to pull 60 amps through a 50-amp circuit.

Without the breaker, those wires would continue to heat up until the insulation melted, potentially sparking a house fire. When we talk about ac circuit breaker keeps tripping what it means, we are talking about an electrical load that has exceeded the safety limits of your home’s infrastructure. In April 2026, with modern high-efficiency systems, these tolerances are tighter than ever, making it even more important to understand why your system is drawing that excess power.

Common Mechanical and Electrical Causes

There are dozens of reasons why a breaker might "pop," but they generally fall into two categories: mechanical strain (the unit is working too hard) or electrical faults (the electricity is going where it shouldn't).

To help you narrow it down, we often look at the timing of the trip. Is it happening the second the unit kicks on, or does it run for twenty minutes before the switch flips?

Symptom	Likely Culprit	Urgency Level
Trips instantly upon startup	Short circuit, grounded compressor, or failed capacitor	High (Do not reset)
Trips after 15–30 minutes of running	Dirty coils, clogged filter, or low refrigerant	Medium (Maintenance needed)
Trips only on the hottest afternoons	Overloaded circuit or aging breaker	Medium
Trips with a burning smell	Melted wiring or motor burnout	Critical (Shut off power)

If you are experiencing any of these, it is often a sign that you need AC Repair Service Lubbock TX to diagnose the specific electrical draw. Other "hidden" issues include loose wiring connections at the breaker itself—vibrations over time can loosen these screws, causing heat to build up and the breaker to trip prematurely.

Why your ac circuit breaker keeps tripping what it means for airflow

In West Texas, dust is a way of life. Unfortunately, dust is the natural enemy of your air conditioner. When we explain ac circuit breaker keeps tripping what it means in terms of airflow, we use the "pillow analogy." Imagine trying to breathe with a pillow held over your face; you have to work much harder to get the same amount of air.

Your AC blower motor feels the same way when it tries to pull air through a dirty filter. This creates massive mechanical strain. As the motor struggles, it draws more and more amperage until the breaker decides enough is enough. This restricted airflow can also cause your evaporator coils to freeze over. Once they are a block of ice, the system works even harder, and the cycle continues until the power is cut. Regular AC Maintenance Tune-Up Lubbock TX is the best way to ensure your system can breathe freely.

Electrical faults and ac circuit breaker keeps tripping what it means for safety

Electrical faults are a bit more serious. A "short circuit" happens when electricity takes a shortcut, bypassing the normal path through the motor. This usually happens because wire insulation has rubbed away or melted.

Even more common are ground faults. In fact, ground faults make up about 98% of all electrical faults. This occurs when a "hot" wire comes into contact with a grounded surface, like the metal casing of your AC unit. This is incredibly dangerous because it can turn the entire exterior of your AC unit into a shock hazard.

If you live in areas like Plainview, you know that moisture intrusion from heavy storms can sometimes contribute to these faults. If your system is tripping due to an electrical short, you should avoid resetting it and instead schedule an AC Maintenance Tune-Up Plainview TX to have a technician check the integrity of your motor windings and wire insulation.

Troubleshooting and Safely Resetting Your AC Breaker

If your AC trips the breaker for the first time, you don't necessarily need to panic. Sometimes a power surge from the grid or a particularly brutal 110-degree Lubbock day can cause a "nuisance trip." However, you must follow a safe procedure to reset it.

How to Safely Reset Your AC Breaker:

1. Turn off the AC at the thermostat: This is the most important step. You do not want the AC to try and kick on the very millisecond you flip the breaker back. Set it to "Off."
2. Locate your electrical panel: Find the breaker labeled "AC" or "HVAC." It will likely be in a middle position (tripped), rather than fully "On" or "Off."
3. Flip it to "Off" first: You cannot go straight from tripped to on. Push the switch firmly to the "Off" position until you hear a click.
4. Flip it to "On": Now push it back to the "On" position.
5. Wait 30 minutes: Give the system a "cooling period." This allows the internal components to settle and ensures you aren't trying to start a hot compressor.
6. Check your outdoor unit: While you wait, do a visual inspection of your outdoor condenser. Is it buried in tumbleweeds? Is the fan blocked by a stray branch? Clear any debris you see.
7. Turn the thermostat back to "Cool": After 30 minutes, turn the system back on.

If the breaker flips again immediately or within a few hours, stop. Do not try to reset it a third time. At this point, you are dealing with a persistent fault that could damage the expensive components of your Air Conditioning system.

Signs of Component Failure: Compressors and Capacitors

Sometimes the problem isn't just dirt or a loose wire; it's a part that has reached the end of its life. The two most common culprits are the capacitor and the compressor.

The Capacitor: Think of the capacitor as a giant battery that gives your AC motor a "kickstart." It provides the extra surge of energy needed to get the motors spinning. Over time, heat and electrical wear cause these to bulge or leak. When a capacitor fails, the motor will try to start but can't. It will sit there humming, drawing "Locked Rotor Amps" (a massive amount of current), which trips the breaker almost instantly.

The Compressor: This is the heart of your system and the most expensive part to replace. If your compressor is "grounded," it means the electrical windings inside have broken and are touching the metal side of the compressor. This is a fatal diagnosis for the part. You might notice a burning smell or a loud clanking sound before the trip occurs. In these cases, we often discuss AC Installation Replacement Lubbock TX because replacing just the compressor on an older unit is often not cost-effective.

For aging units that are "hard starting" (struggling to kick on but still functional), we sometimes install a "hard start kit." This is essentially a high-powered capacitor that helps the system start up more efficiently, reducing the amp draw and preventing those annoying breaker trips.

Frequently Asked Questions about Tripping AC Breakers

Is it safe to keep resetting a tripped AC breaker?

No, it is not. A circuit breaker is a warning light for your home. If you keep resetting it without fixing the underlying problem, you are forcing electricity through a system that has already told you it can't handle it. This can lead to wire insulation damage, equipment burnout, and even electrical fires. If it trips more than once, safety must come first—leave it off until a pro can look at it.

Can a dirty air filter cause the breaker to trip?

Absolutely. As we mentioned earlier, restricted airflow is one of the leading causes of blower motor overload. In West Texas, we recommend checking your filters every month, especially during the spring dust season. A clean filter not only prevents breaker trips but also significantly improves your energy efficiency and lowers your monthly utility bills.

What should I do if the breaker trips immediately after resetting?

If the breaker snaps back to the "Off" or "Tripped" position the moment you try to reset it, you likely have a "dead short" or a grounded motor. This is a critical electrical issue. Do not attempt to force the switch to stay on. Turn the power off at the main disconnect and call for professional diagnostics. DIY electrical work on high-voltage AC circuits is extremely dangerous and can be fatal if you don't have the proper testing equipment.

Conclusion

Understanding ac circuit breaker keeps tripping what it means is the best way to protect your home and your wallet. Whether it's a simple matter of a clogged filter or a more complex issue like a grounded compressor, that tripping breaker is a cry for help from your HVAC system.

At Joe Rushing Plumbing, Heating & Air Conditioning, we’ve been serving the Lubbock and Levelland communities for generations. We know exactly what the West Texas heat (and the West Texas dust!) can do to an air conditioner. Our team is expert at diagnosing these electrical gremlins and getting your home back to a comfortable temperature safely.

Don't spend your summer "flipping the switch" every hour. Let us handle the technical stuff so you can enjoy the cool air. From annual preventive maintenance to emergency repairs, we are here to help. If your AC is acting up, visit our Air Conditioning page to schedule a visit today. We’ll get to the bottom of your breaker issues and make sure your system is ready for whatever the Texas weather throws at it.
